Skins & Templates
IntroductionSo, you've installed Nucleus... You've got several options now concerning the look of your site:
This document tries to help you with doing this. Table Of Contents
HTML and CSSWhen editing skins and templates, you'll need at least some basic knowledge about HTML and CSS. This section provides some pointers to online tutorials and references:
The default skinThis section briefly explains which files are used by the default skin, and how you can edit them. The default skin uses three files:
The CSS file default.css contains extra information about how pages are built up by the default skins and templates. Basically, it comes down to three div-containers: .contents, .logo and .menu To edit the default.css file, you'll need a simple texteditor that does not add extra data, like Notepad (comes with windows),emacs or TextPad. Do not use WordPad, Word, OpenOffice Writer, ... since those add extra markup data. Templates vs. SkinsIn Nucleus, both templates and skins are used to determine the way your blog looks. So, what is the difference between these two?

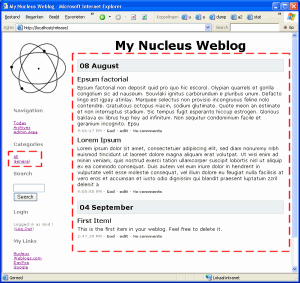

An example is given in the image below. The whole page is defined by a skin, while the parts in the red rectangles (category list and blog contents) are formatted according to the templates. It's the skin that defines where the red rectangles will appear. How skins are chosenThis section tries to explain how Nucleus chooses the skin to use when you request a page. Skin TypesFirst of all, there are several skin types between which Nucleus makes a choice according to the request URL: see the list below. This should be very obvious.
Next to these 7 types, there is an error type, which is used when errors occur. The Skin CascadeThe table above also indicates how the blog to be displayed is chosen. The skin that will be used, is the default skin for that weblog, as selected in the settings for that weblog. Not every skin needs to have definitions for all skin parts. When a part is missing, the skin called 'default' will be used instead (see below). This allows you for example to only create one error page and one member page. The 'default' SkinNucleus requires that at all times there exists a skin called 'default'. This is the skin to which is backed up when a skinpart is missing. If the same skinpart is also missing from the 'default' skin, the error message 'no appropriate skin found' will be shown. Another reason why the 'default' skin is required, is to be able to display error messages when no blog is selected (e.g. the 'no such blog' error) Howto: An 'add item' form on your websiteNucleus provides facilities to add an 'add item' form to your weblog. It adds an 'add item' link that shows and hides the 'add item' form right above the current contents of your weblog. Entering text in this form results into an instant preview, so you can immediately see how the actual weblog item will look like. All modifications below apply to the skin for the main index page. You don't need to alter any templates. 1. JavaScript codeFirst of all, you need to include the edit.js Javascript code by putting the following line somewhere in between the <head> and </head> tags. This file contains the functions that are needed to make the preview work and to hide/show the 'add item' form. <script type="text/javascript" src="nucleus/javascript/edit.js"></script> 2. Indicate where the form will show upThe, you add a logical container somewhere on your page, where you want to have the 'add item' form. The "display:none;" makes sure it is hidden. <div id="edit" style="display:none;"> ... </div> 3. Code that inserts the form and previewNow, you can add your custom HTML into this container, and use <%additemform%> and <%preview(templatename)%> to insert the 'add item' form and the preview code respectively. An example is given below <h2>Add Item</h2> <%additemform%> <h2>Preview</h2> <%preview(mytemplate)%> 4. The 'add item'-linkAnd the finishing touch: a link or button to trigger the visibility of the form. Two examples are given. The first one is a simple link: <a href="javascript:showedit();">add item</a> The second example is a hidden button in the topleft corner <div style="position: absolute; left: 0px; top: 0px; width: 10px; height: 10px" onclick="javascript:showedit();"> </div> Howto: CSS to define the look of formsThrough variables such as <%searchform%> and <%commentform%>, forms can easily be included into your skin. To allow styles to be applied on those forms, CSS classes have been assigned to the input fields and buttons, and to a surrounding DIV-container. Below is a list of which CSS class corresponds to which form. These are the classes assigned to the surrounding DIV-container.
Below is an overview of the CSS classes assigned to buttons and input fields.
An example of how to use these classes in you stylesheets is given below: /* applies to all input fields */ .formfield { background-color: gray; } /* only applies to buttons for comment forms */ .commentform .formbutton { border: 1px solid #000; background-color: #ddd; color: #000; font-size: xx-large; } In the example above, all formfields that nucleus generates are given a gray background, and the submit button on the comment form has large text, a black 1px border, black text and a light-gray background. Howto: Enabling karma votesThe default skins and templates have karma votes disabled (better: left out). Here's how to add them to your template. 1. Open the template for the main indexStart editing the template named 'default' (when starting from the default skins/templates that come with Nucleus) 2. Edit the 'Item body' template-partEdit the bottom part of the item body templatepart to be as follows: <div class="iteminfo"> <%time%> - <a href="<%authorlink%>"><%author%></a> - karma: <%karma%> [<a href="<%karmaposlink%>">+</a>/<a href="<%karmaneglink%>">-</a>] - <%edit%> <%comments%> </div> On the main page, the iteminfo line for the items will now look like: 3. Template for the detailed pagesAt this time, the karma score is only listed on the main page. To make it appear on the detailed page also, the same change needs to be applied to the template with name 'detailed' Howto: 'edit item' linksThe default Nucleus skin includes 'edit item'-links that are only visible to the author of a item and to the people having the right to alter the item. This section explains which template-parts are needed for this feature to work. 'editlink'-templateThe 'Edit Link'-templatepart defines how an 'edit item'-link is formatted. By default, the contents is:
If you would rather edit the item in the admin area, instead of in the popup bookmarklet, use the following code instead:
Positioning the edit-linkNext to the 'editlink' template, there's the See the example from the karma votes howto to see an example. Writing skins with Export/Import in mindNucleus v2.0 introduced the ability to import and export skins and templates. This section describes the creation of a simple skin, highlighting the features involved. Creating a new skin
Edit the skinThe In our case:
Will get expanded to:
Lets go easy on ourselves and define the global layout in two files called pagehead.inc
pagefoot.inc
The contents of the skinparts then becomes kind of trivial: (I'm not defining them all, you'll get the point by seeing the most important ones) Main Index
Item Pages
Note that I named my templates vista/main and vista/detailed. Makes it easier to see things together six months later. Both templates are actually clones that I made of the default and detailed templates that come with Nucleus. Archive List
Archive
Export the skinWhen all is done, you can export the skin from the
Importing a skinImporting is the reverse process:
|
|
|
